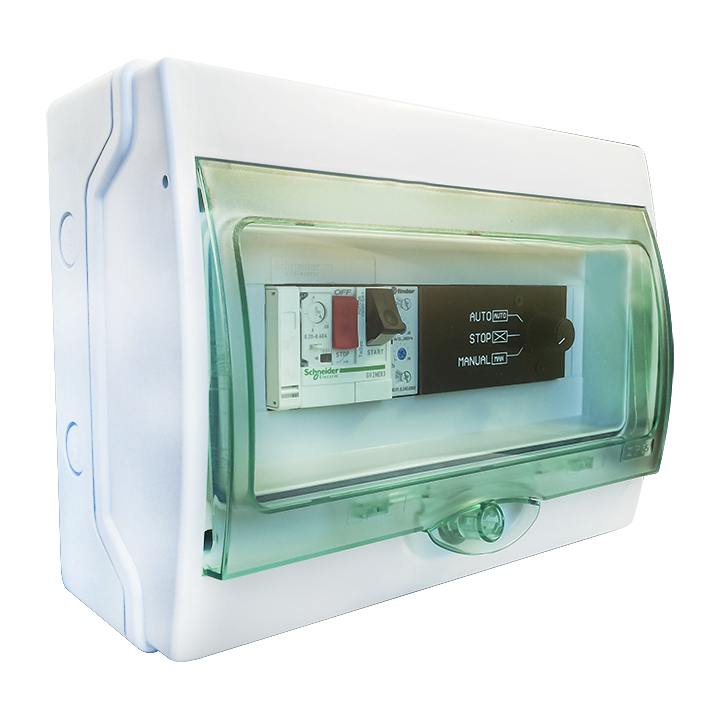

MP-F [Auto+Manual] (Timed Inflator)

Protective enclosure for controlling single-phase (230 VAC) or three-phase (400 VAC) motors, specially designed for controlling fans, coolers, heating systems, humidifiers, irrigation systems, and dual-plastic inflation systems in agricultural greenhouses, among others.

IMPORTANT: This model was designed for controlling motors that rotate in the same direction.

It consists of components of proven quality from manufacturers such as Schneider Electric, Imo Precision, and Finder, among others.

It is compatible with climate control units and motors from a wide variety of brands, always offering the same reliability and longevity.

.

Technical Specifications:

• Control Voltage: 230 VAC

• Operating Mode: Automatic and Manual

• Drive Type: Contactors

• Motor Voltage: 230 VAC or 400 VAC

• Motor Rated Current: 0.25, 0.40, 0.63, 1, 1.6, 2.5, 4 A. Additional Information: The single-phase version offers motor protection via circuit breakers: 001 (1A), 002 (2A), and 004 (4A).
