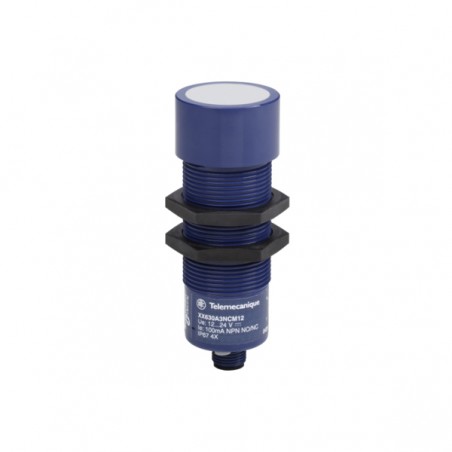

Analog Ultrasound 4-20 mA S-2M

Telemecanique Ultrasonic XX sensors product line

sensor type Ultrasonic sensor

series name Generic function

XX9 sensor name

cylindrical M30 sensor design

Diffuse detection system

[Sn] nominal sensing distance 2 m adjustable teach with button

plastic material

Analog output signal type

4-wire connection technique

4...20 mA analog output function

[Us] nominal supply voltage 15...24 V DC with reverse polarity protection

electrical connection 4-pin M12 male connector

[Sd] detection distance 0.12…2 m

beam angle 10°

degree of protection IP IP67 in compliance with IEC 60529
