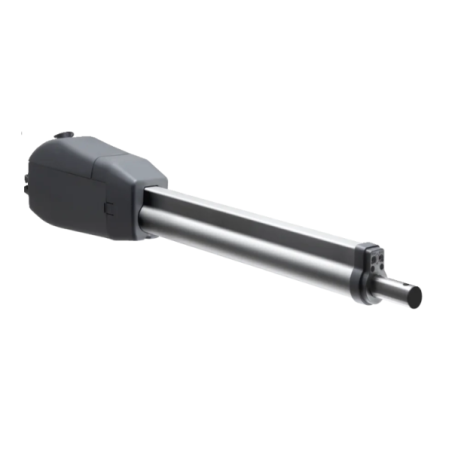

copy of Twist XL Motor

Automatism for stop gates.

Hardware for pillars and gate sheets.

Electronic table not included.

Flexible:

Universally applicable for right and left stop

It is possible to operate 1 and 2 sheets, as well as the mixed operation twist 200 E/EL 1) and twist 350

Also applicable in case of closed gate fillers

Also suitable for gates that open out

Microprocessor control with various adjustment possibilities, e.g. pass-through function, automatic gate closing, adjustable speed and warning time, adjustable behaviour when an obstacle appears (full or partial gate reversal)

Interface for TorMinal programming apparatus

Quick installation and simple electrical connection

Insurance:

The patented SOMMER braking system makes the automatism very resistant – even with extreme force effects of up to 3 tonnes, e.g. due to wind load or vandalism

Self-inhibiting without electric lock (up to 5.0 m)

Accident protection by electronically controlled force measurement with DPS (dynamic power system)

The automatism can be manually unlocked in any position (e.g. in the event of a power failure)

Connections to security devices, e.g. warning light and light barrier (2 and 4 wires) and for a consumer

(24 V DC), powerless power-only relin

Innovative:

Smooth gear controlled in the form of a ramp without loss of force

Sequence of delicate movement of the gate, sliding due to the threaded spindle mounted with spring.
