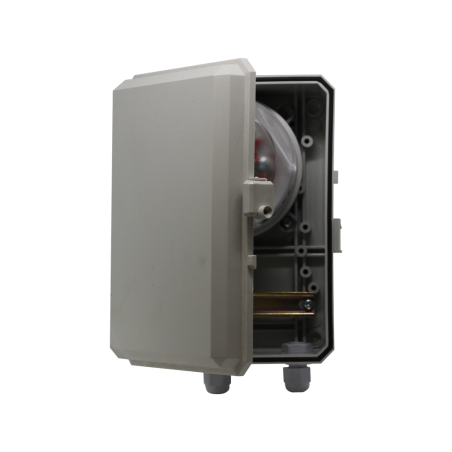

20-300Pa Pressure Switch Module

€150.00

Tax excluded

Monitoring of overpressure, underpressure (vacuum) and differential pressure of air and non-combustible and non-aggressive gases.

Quantity

[Delivery cost is not included, it will be calculated after entering your address and before making payment.]

20 to 300Pa. . . . . (10Pa) Prefilter (G3eG4)

50 to 500Pa. . . . . (20Pa) Fine filter(F5aF9) and fan

200 to 1000 Pa. . . (100 Pa) High efficiency filter (E11, H12..., U15...) and fan

Precision . . . . . . . . . . . . . . . . . +/- 15% of the adjusted value

Max. pressure instantaneous. . . . . up to 10 kPa (no membrane damage)

Electrical contact. . . . . . . . . . 1 changeover contact (max. 1.5A (0.4A), 250 VAC)

Room temperature . . . . . . -20 to 85oC

Cable entry gland. . . M16

Degree of protection. . . . . . . . . IP54(1)

CE Compliance. . . . . . . . . . low voltage directive 2006/95/EC

Dimension/Weight. . . . . . . . . . . . Ø80 x 60 mm / 150g

IP65 as an option

Reference 102-00-20:300L10
